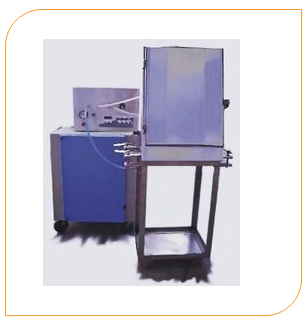

Vacuum Packing Machine for Pharmaceutical Bulk Drugs |
|
| Product Description |
| Model name |
: |
Vertical model for Liquids |
| Vacuum chamber size |
: |
550 Width x 120 Length x 700 mm Height. |
| Over all Size |
: |
600 x 600 x 1500 |
| Construction |
: |
Complete SS 304 |
| Lid |
: |
SS 304 |
| Gas |
: |
By default |
| Vacuum Pump |
: |
20 / 40 cum |
| Vacuum monitoring & control |
: |
German dial gauge, dial gauge & vacuum sensor optional |
| Electrical consumption |
: |
Maximum 2.00 KW can be connected to domestic 15 amp domestic supply |
| Packing cycle |
: |
2 to 3 Cycles/ minute depending upon the product to vacuum packed. |
| Pouch hanging arrangement |
: |
SS hooks |
Winner special :
• Maintenance free Vacuum actuator for lifting sealing bars. Does not require compressor.
• Fiber glass sealing bars for short circuit protection. |
| |
|
|
|
|
| |
This is the very unique vacuum packing machine. It is specially made for packing pharmaceutical bulk drugs in “A” class clean environment. As in pharmaceutical industry every apparatus or machine in contact with drug has to be sterilized. The vacuum chamber of this machine is easily detachable and sterilized in auto claves at the temperature of 1210 C. This machine is four modules. 1) Vacuum pump with transformers 2) Control Panel 3) Trolley for vacuum chamber & 4) Vacuum chamber. All the contact parts are made from Stainless Steel 316. We can design, manufacture and supply this machine as per customer’s requirement. |
| |

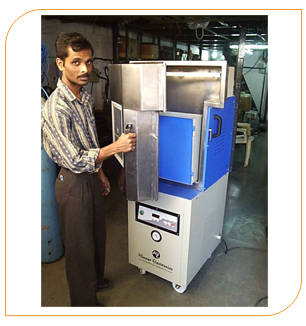

| Vertical model for powder & solids |
 |
| Product Description |
| Model name |
: |
Vertical model for powder & solids
Vertical 5 to 10 kg |
| Vacuum chamber size |
: |
550 Width x 200 Length x 700 mm Height. |
| Over all Size |
: |
600 x 600 x 1500 |
| Construction |
: |
Complete SS 304 |
| Vacuum Pump |
: |
20 / 40 cum |
| Electrical consumption |
: |
Maximum 2.00 / 3 KW can be connected to domestic 15 amp domestic supply. |
| Packing cycle |
: |
2 to 3 Cycles/ minute depending upon the product to vacuum packed |
| Pouch Hanging arrangement |
: |
SS hooks |
Winner special :
• Maintenance free Vacuum actuator for lifting sealing bars. Does not require compressor.
• Fiber glass sealing bars for short circuit protection. |
| |
|
|
|
| |

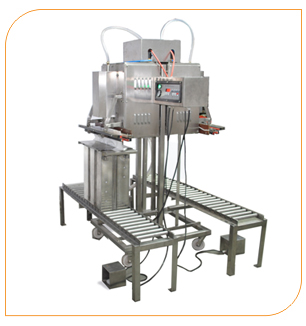

| Nozzle Single Head for bulk packing |
 |
| Product Description |
| Model name |
: |
Nozzle Single Head for bulk packing
25 kg Nozzle Single Head |
| Nozzle |
: |
Single 25 mm |
| Over all Size |
: |
1150 x 915 x 1000 |
| Construction |
: |
Only Chamber SS 304 |
| Lid |
: |
MS dome with Transparent Acrylic widow |
| Vacuum Pump |
: |
40 cum / 63 cum |
| Electrical consumption |
: |
Maximum 3.5 KW only 3 Phase |
| Packing cycle |
: |
2 to 3 Cycles/ minute depending upon the product to vacuum packed. |
Winner special :
• Maintenance free Vacuum actuator for lifting sealing bars.
• Fiber glass sealing bars for short circuit protection. |
| |
|
|
|
| |

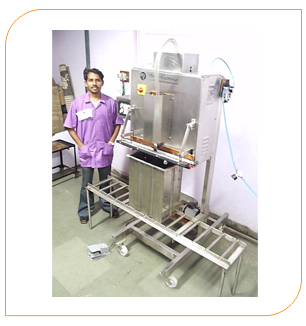

| Nozzle Single Head for bulk packing |
 |
| Product Description |
| Model name |
: |
Nozzle Single Head for bulk packing
25 kg Nozzle Double Head |
| Nozzle |
: |
Single 25 mm |
| Over all Size |
: |
1150 x 915 x 1000 |
| Construction |
: |
Only Chamber SS 304 |
| Lid |
: |
MS dome with Transparent Acrylic widow |
| Vacuum Pump |
: |
40 cum / 63 cum |
| Electrical consumption |
: |
Maximum 3.5 KW only 3 Phase |
| Packing cycle |
: |
2 to 3 Cycles/ minute depending upon the product to vacuum packed |
Winner special :
• Maintenance free Vacuum actuator for lifting sealing bars.
• Fiber glass sealing bars for short circuit protection. |
| |
|
|
|
| |

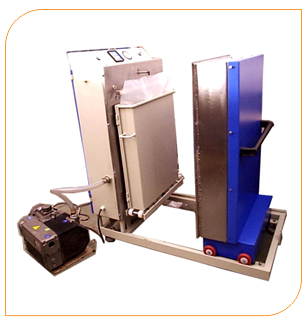

| Bulk packing SSMS |
 |
| Product Description |
| Model name |
: |
Bulk packing SSMS |
| Vacuum chamber size |
: |
800 Width x 175 Length x 1000 mm Height. |
| Over all Size |
: |
850 x 300 x 850 |
| Construction |
: |
Complete SS 304 |
| Gas |
: |
By default |
| Vacuum monitoring & control |
: |
German dial gauge, dial gauge & vacuum sensor optional |
| Vacuum Pump |
: |
40 cum / 63 cum /100 cum |
| Electrical consumption |
: |
Maximum 3.5 KW only 3 Phase |
| Packing cycle |
: |
2 to 3 Cycles/ minute depending upon the product to vacuum packed |
Winner special :
• Maintenance free 3 nos. Vacuum actuator for lifting sealing bars. Does not require compressor.
• Fiber glass sealing bars for short circuit protection. |
| |
|
|
|
| |

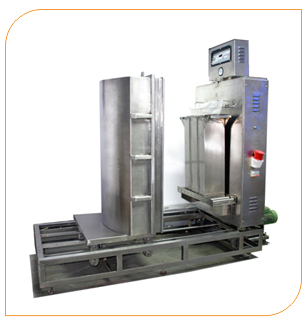

| Bulk packing SS 304 |
 |
| Product Description |
| Model name |
: |
Bulk packing SS 304 |
| Vacuum chamber size |
: |
800 Width x 175 Length x 1000 mm Height |
| Over all Size |
: |
850 x 300 x 850 |
| Construction |
: |
Complete SS 304 |
| Conveyor |
: |
Roller, take off and take in |
| Dome |
: |
Motorized optional |
| Gas |
: |
By default |
| Vacuum monitoring & control |
: |
German dial gauge, dial gauge & vacuum sensor optional |
| Moulds |
: |
Specially for wrinkle free sealing 2 nos. SS 304 |
| Vacuum Pump |
: |
40 cum / 63 cum /100 cum |
| Electrical consumption |
: |
Maximum 3.5 KW only 3 Phase |
| Packing cycle |
: |
2 to 3 Cycles/ minute depending upon the product to vacuum packed |
Winner special :
• Maintenance free 3 nos.Vacuum actuator for lifting sealing bars. Does not require compressor.
• Fiber glass sealing bars for short circuit protection. |
| |
|
|
|
| |
| |
|
| |
