Double Chamber Vacuum Packaging Machine, Double Chamber Vacuum Packing Machines, Vacuum Packers, Mumbai, India

Double Chamber Vacuum Packaging Machine, Double Chamber Vacuum Packing Machines, Vacuum Packers

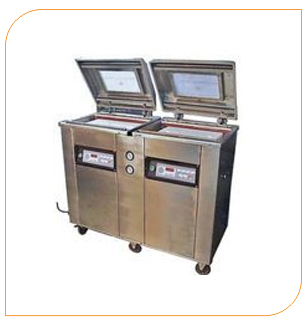

Double Chamber Vacuum Packaging Machine

Vacuum Packaging Machine Double Chamber
Product Description
Model name
:
Double Chamber
Vacuum chamber size
:
450 Width x 500 Length x 100 mm Height.
Over all Size
:
500 x 515 x 850
Construction
:
Complete SS 304.
Lid
:
SS dome with Transparent Acrylic widow
Vacuum Pump
:
20 cum, 40 cum, 63 cum.
Vacuum monitoring & control
:
German dial gauge, & vacuum sensor optional
Electrical consumption
:
Maximum 3.0 KW can be connected to domestic electric supply.
Packing cycle
:
2 to 3 Cycles / minute depending upon the product to vacuum packed.

Winner special :
• Maintenance free Vacuum actuator for lifting sealing bars.
• Fiber glass sealing bars for short circuit protection.


Winner Electronics Packaging Solutions produces Double Chamber Vacuum Packaging Machine. While vacuum packing maximum time is consumed for placing the bag in the vacuum chamber. With double chamber machine, while one chamber vacuums the product, one can arrange the bags in second chamber. Hnece the production is double. The overall size of the machine is 1125 Wide x 615 Depth x 950 Height and that of vacuum chamber is 500 x 450 Depth x 100 Height. It is made up of stainless steel with Acrylic viewing port which makes it easy to view the process. Packing cycle is 2 to 4 / minute depending upon the product. The Sealing Bar of the machine is 490 mm long with vacuum pump of 25-40 M3/Hour. The electricity consumed by the machine is 1 to 1.5Kw maximum.

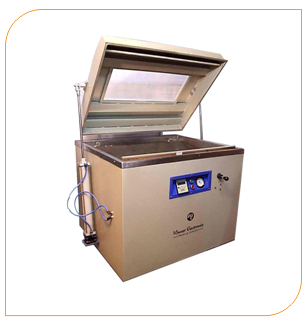

Floor Pneumatic
Floor Pneumatic
Product Description
Model name
:
Floor Pneumatic
Vacuum chamber size
:
1100 Width x 800 Length x 200 mm Height
Over all Size
:
1150 x 915 x 1000 with lid opening 1600 mm
Construction
:
Only Chamber SS 304
Lid
:
MS dome with Transparent Acrylic widow
Vacuum monitoring & control
:
German dial gauge, & vacuum sensor optional
Vacuum Pump
:
40 cum / 63 cum / 100 cum
Electrical consumption
:
Maximum 3.5 KW only 3 Phase
Packing cycle
:
2 to 3 Cycles/ minute depending upon the product to vacuum packed.

Winner special :
• Maintenance free Vacuum actuator for lifting sealing bars.
• Fiber glass sealing bars for short circuit protection.

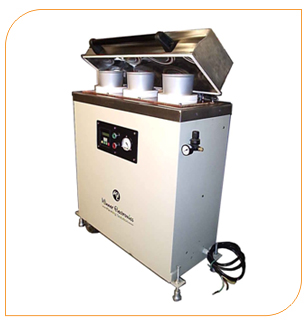

Printing Tin Packing
Printing Tin Packing
Product Description
Model name
:
Printing Ink Tin packing.
Vacuum chamber size: 800 Width x 250 Length x 200 mm Height.
Over all Size
:
830 x 300 x 850
Construction
:
SS 304 / MS
Lid
:
SS dome with Transparent Acrylic widow
Vacuum monitoring & control
:
German dial gauge, & vacuum sensor.
Vacuum Pump
:
40 cum.
Electrical consumption
:
Maximum 3.5 KW only 3 Phase
Packing cycle
:
3 to 4 Cycles/ minute depending upon the product to vacuum packed.

Winner special :
• Maintenance free Vacuum actuator for lifting sealing bars.
• Fiber glass sealing bars for short circuit protection.

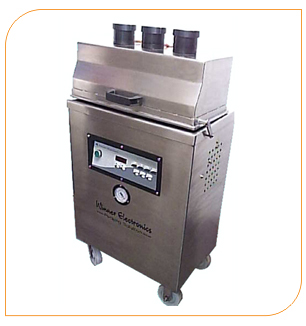

Printing Ink Tin packing
Printing Ink Tin packing
Product Description
Model name
:
Printing Ink Tin Packing
Vacuum chamber size
:
800 Width x 250 Length x 200 mm Height.
Over all Size
:
830 x 300 x 850
Construction
:
Complete SS 304
Lid
:
SS dome with Transparent Acrylic widow
Vacuum Pump
:
40 cum
Vacuum monitoring & control
:
German dial gauge, & vacuum sensor optional.
Electrical consumption
:
Maximum 3.5 KW only 3 Phase
Packing cycle
:
3 to 4 Cycles/ minute depending upon the product to vacuum packed
Winner special :
• Maintenance free Vacuum actuator for lifting sealing bars.
• Fiber glass sealing bars for short circuit protection.
